Graphite Design Tour AD EK Driver Shaft with Adapter (Titleist / TaylorMade / Callaway / PING / Cobra / Srixon / Mizuno) - Made to Order, Japan Model

Graphite Design Tour AD EK Driver Shaft with Adapter (Titleist / TaylorMade / Callaway / PING / Cobra / Srixon / Mizuno) - Made to Order, Japan Model

$299.00 USD
$299.00 USD
Sale Sold out
Free shipping to supported countries.
Spec
Club Length
Adapter

99 in stock

Made to Order - Ships in 7-10 Business Days

This shaft is assembled to order in Japan with your selected adapter, length and a standard grip. Please allow 7-10 business days for assembly before shipping. Delivery usually takes 5-14 business days after shipment.

Graphite Design Tour AD EK (Japan Model, Brand New)

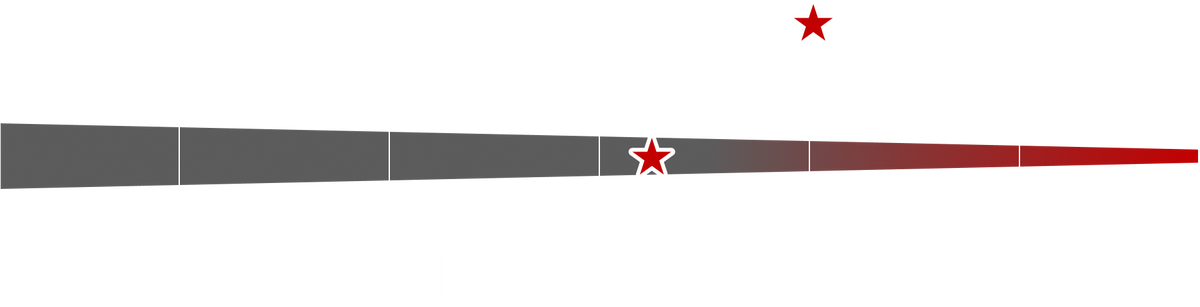

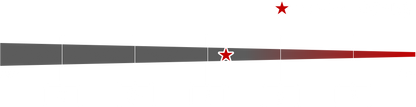

A mid-kick shaft with Graphite Design's new shape and AD Shield technologies. The 3D Speed Tornado design adds smooth flex in the mid section while firming up the butt section for faster ball speed.

  • Adapter: Compatible adapter (aftermarket, not OEM) for your selected brand
  • Grip: Standard rubber grip (M60, approx. 50g, round / no back line) - fixed
  • Assembly: Professional club builder in Japan. Swing weight and frequency are not adjusted.
  • Club length is the assembled club length based on the reference head below. It may vary slightly with other head models.

Adapter Compatibility

Adapter Compatible Drivers Length Reference Head
Titleist GTS, GT, TSR, TSi, TS, 917, 915, 913, 910 series, VG3 (2014 or later). Not for GTS300 Mini / GT280 Mini. GT3
TaylorMade Qi4D, Qi35, Qi10, STEALTH 2, STEALTH, SIM2, SIM series and others STEALTH
Callaway QUANTUM, ELYTE, PARADYM Ai SMOKE, PARADYM, ROGUE ST, EPIC, MAVRIK, EPIC FLASH, ROGUE series and others PARADYM
PING G440, G430, G425, G410 series. Not for G400 or older. G410 PLUS
Cobra DARKSPEED, AEROJET, LTDx, RAD SPEED, SPEED ZONE, F9 series. Not for DS-ADAPT or newer. SPEED ZONE XTREME
Srixon ZXi, ZXi TR, ZXi LS, ZXi MAX. Also fits ZX series (adjustment settings differ). ZXi
Mizuno JPX ONE, ST series. Also fits Mizuno Pro. ST200X

Specifications

Spec Weight Torque Butt Kick Point
EK-4 R2 48g 5.3 15.40mm Mid
EK-4 R1 49g 5.3 15.45mm Mid
EK-4 S 50g 5.2 15.45mm Mid
EK-4 X 51g 5.2 15.50mm Mid
EK-5 R2 55g 4.4 15.40mm Mid
EK-5 R1 56g 4.4 15.45mm Mid
EK-5 S 56g 4.4 15.45mm Mid
EK-5 X 59g 4.4 15.55mm Mid
EK-6 SR 64g 3.2 15.30mm Mid
EK-6 S 66g 3.2 15.40mm Mid
EK-6 X 68g 3.2 15.40mm Mid
EK-6 TX 70g 3.2 15.50mm Mid
EK-7 S 74g 2.8 15.35mm Mid
EK-7 X 77g 2.8 15.45mm Mid
EK-7 TX 78g 2.8 15.50mm Mid

Torque in degrees. Tip diameter 8.5mm, raw length 1168mm (before cutting). Specs from Graphite Design official data.

Orders can be cancelled before shipment. Damaged, defective or incorrect items are always covered.
